The mobile wheelchair lift is a product designed with excellent accessibility to help the disabled and the elderly move on stage without obstructing the view of the stage by installing a lift that can be moved on a stage or performance hall where it is not possible to install a fixed wheelchair lift.
Product specification

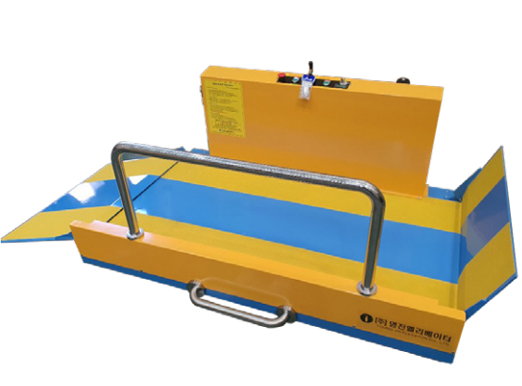

Mobile wheelchair lift
T Y P E
When boarding

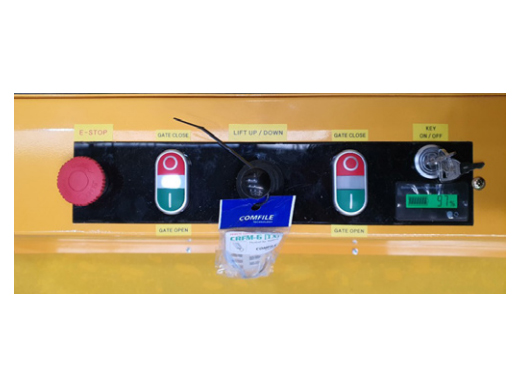

Driver’s panel

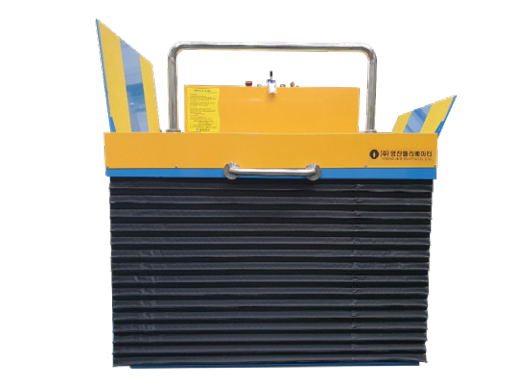

When rising

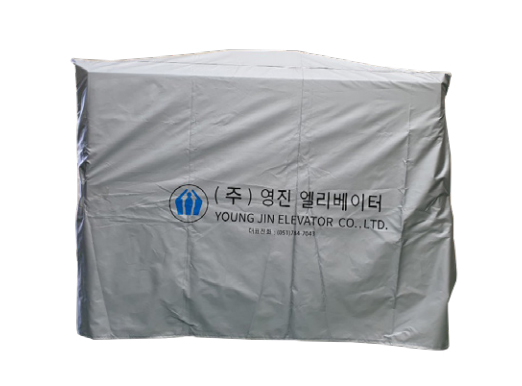

When storing

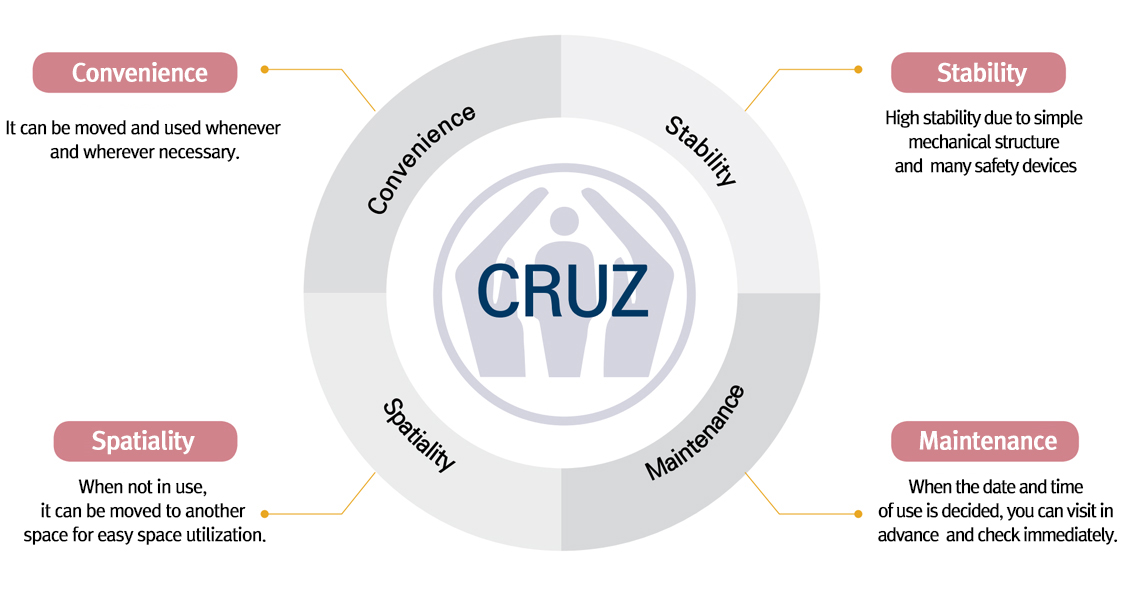

Product Features
| Type | Loading weight (Kg) | Speed (m/min.) | Min/Max ground clearance (mm) | Purpose |
|---|---|---|---|---|
| Movable vertical Wheelchair lift |
300 | 1.2 | 145/1,000 | Pulpit, stage, performance hall |
| Specifications | Drive method – Electric operation, screw method Control method – Motor synchronous control Outer area (mm) – 950 (width) X 1400 (length) / moving (width) – 750 Motor capacity – DC24V, 12A Power used – AC220V single phase Battery capacity – 960W (24V, 40A) |
|||

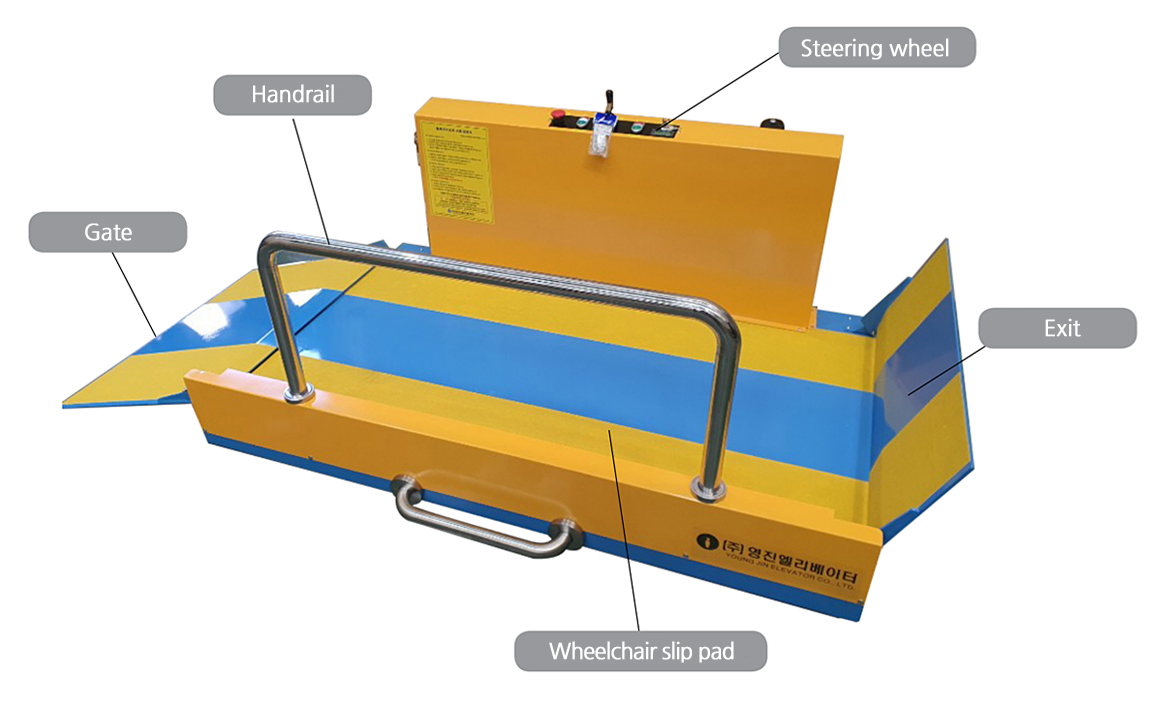

Name of each part

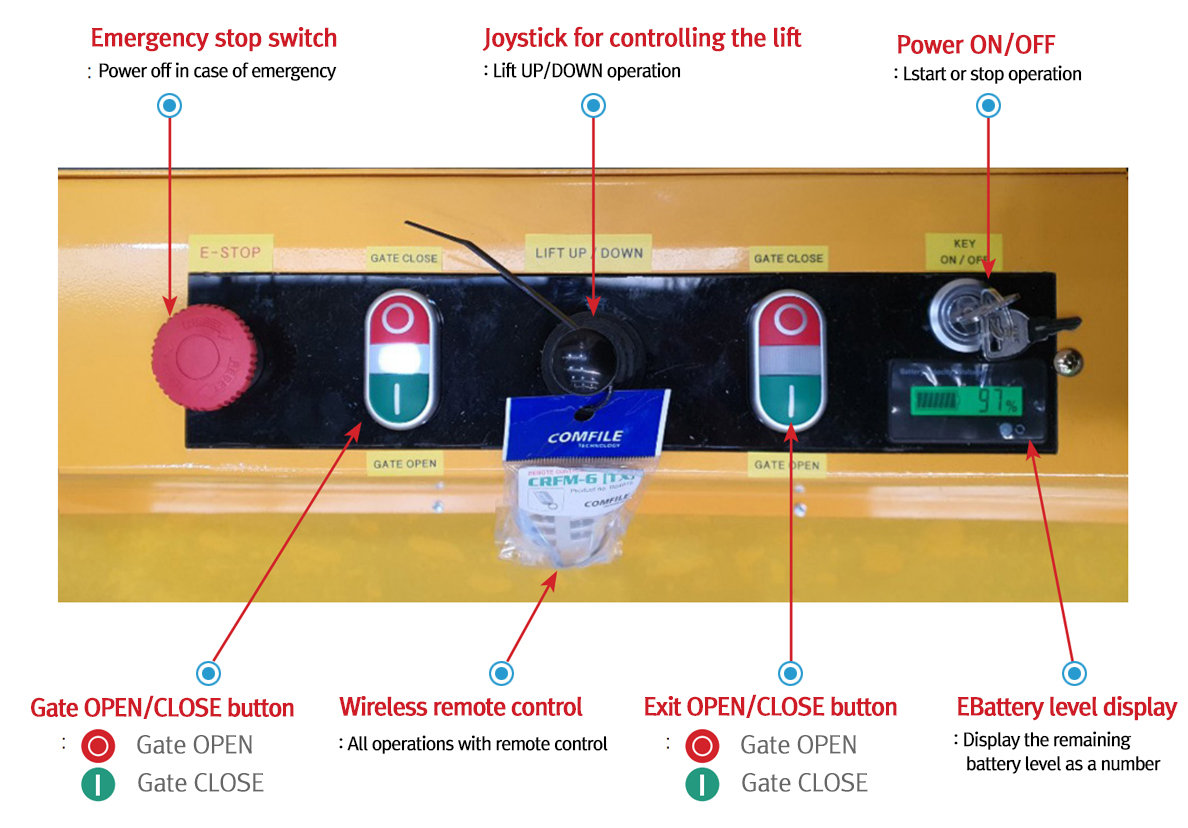

Functions of Driver’s panel

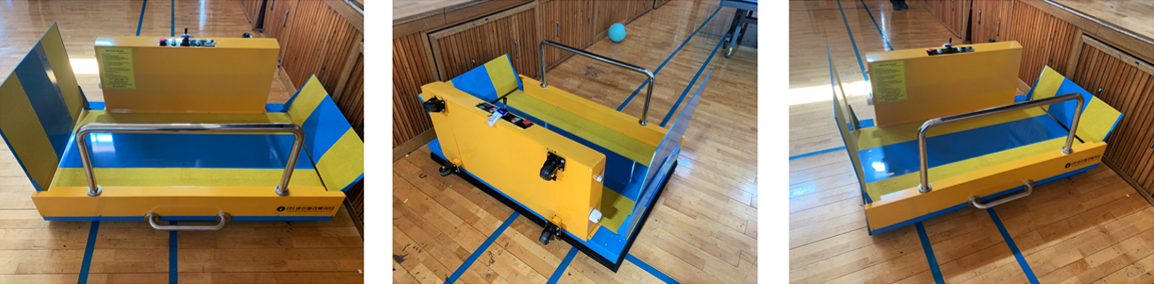

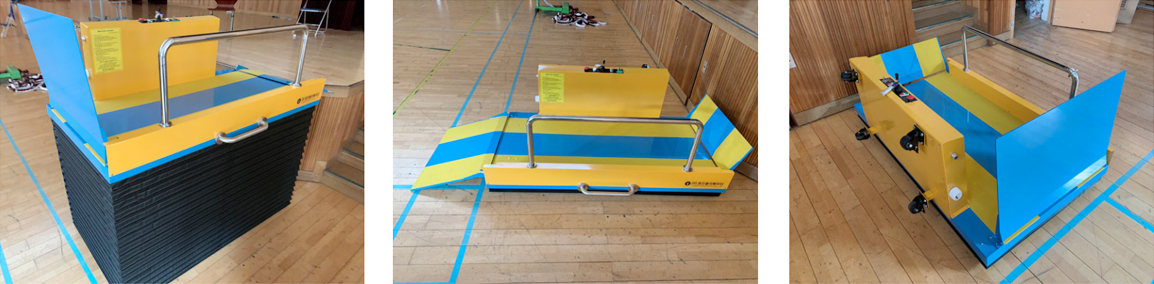

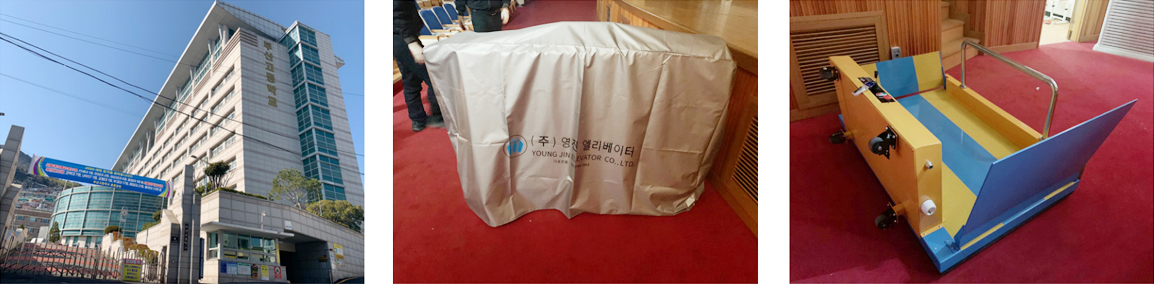

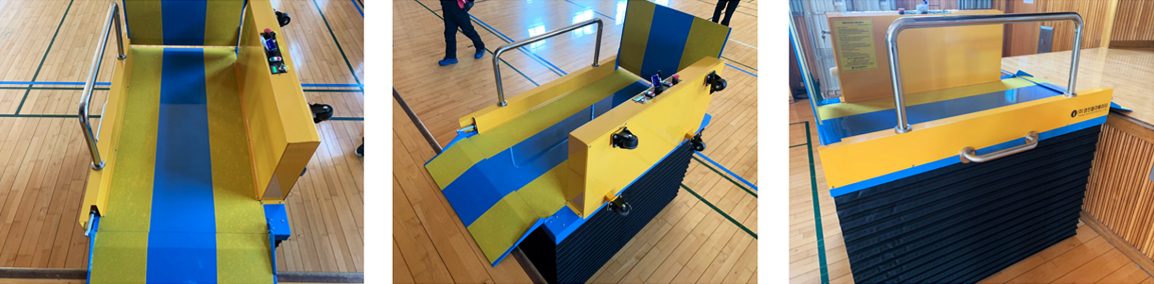

Construction photo
Myungho Middle School
Busan High School
Buheung High School
Jangan High School
